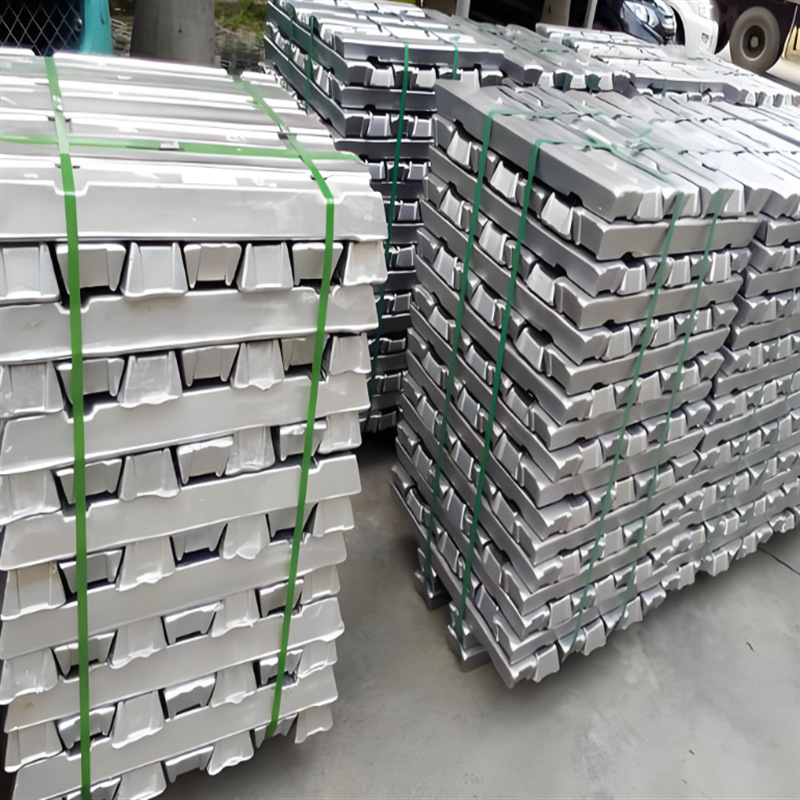

Die Casting Aluminum Alloy Ingot DM32 Anodized Aluminum Alloy Ingot AC44300 Aluminum Oxide Ingot

EN AC-AlSi12(Fe)(a) Chemical element composition content (%)
Composition Fe Si Mn Cu Ti ⓑ Zn Other individual ⓐ Other total ⓐ More
Minimum value - 10.5 - - - - - - Al: Remainder
Maximum value 1 13.5 0.55 0.1 0.15 0.15 0.05 0.25
Other individual or other total chemical compositions include chemical compositions for which the values are not specified in the table. They should only be analyzed if they are assumed to exist or in routine analysis and there is an indication that their composition will exceed the specified value.
ⓐ "Other" does not include transformation or refining elements such as Na, Sr, Sb and P; "Other" includes all elements not listed in this table or for which no specific value is given
ⓑ Refining agents such as Ti, B or master alloys containing nucleating particles such as TiB2 should not be considered as impurities. The minimum and maximum contents of refining elements should be agreed between the supplier and the buyer.
ⓒ European regulations and directives need to be taken into account. See clauses 7 to 10 of this standard.

EN AC-AlSi12(Fe)(a) Mechanical properties
Conditions Marking Heat treatment or state Tensile strength
σb
Mpa Yield point
σs
Mpa Elongation or elongation after fracture
δ
% Hardness
HBW
Die casting (D) EN AC-44300-D-F As-cast F ≥240 ≥130 ≥1 ≥60

helen@tctachem.com ; miki@tctachem.com

Grade EN AC-AlSi12(Fe)(a)
European standard steel grade EN AC-44300
Corresponding standard EN 1706-2020(+A1:2021)
Aluminium and aluminium alloys - Castings - Chemical composition and mechanical properties
Classification Aluminium and aluminium alloys
Label Aluminium alloy castings
Description ①Grade prefix EN AB indicates European standard aluminium alloy ingot (see EN 1676); EN AC indicates aluminium alloy castings
②S-sand casting; K-cold mold or permanent mold casting; D-die casting; L-investment casting
